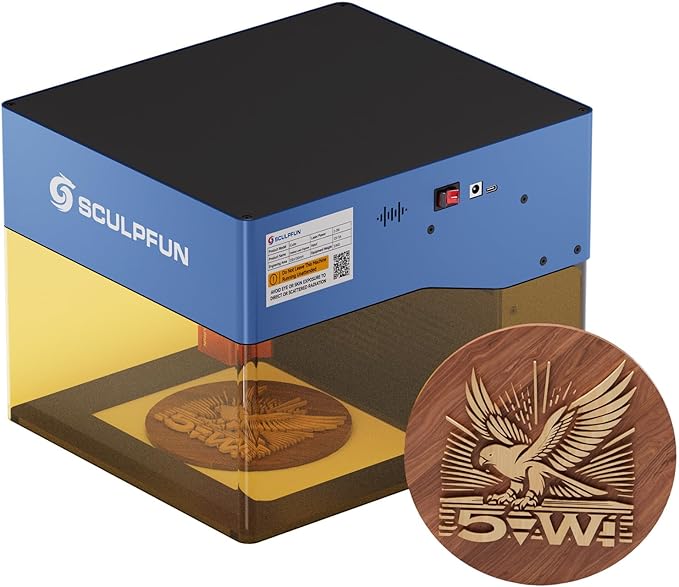

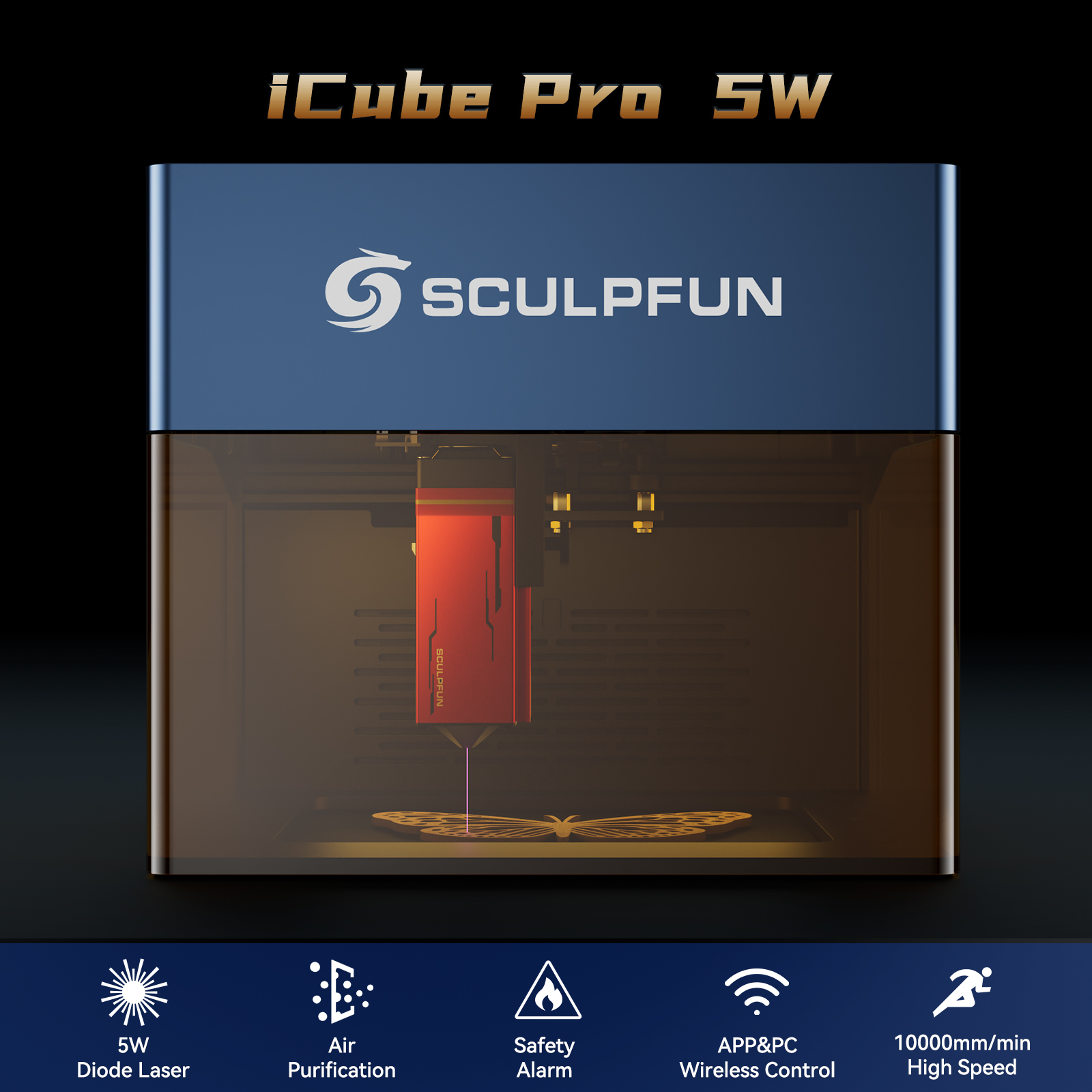

SCULPFUN ICube Pro 5W Fully Enclosed Laser Engraver Mini DIY Laser Marking And Engraving Machines For Wood And Leather

Notes: Only hardware and base drivers for operating system are provided. The laser engraver supports LaserGRBL (free), Lightburn (not free) and other similar software like Benbox, GrblController, LiteFire.

Products Description

Product Model	iCube Pro 5W
Engraving Size	130*130mm
Engraving Materials	Wood, Paper, Cardboard, Plastic, PCB Board, Aluminum Oxide, 304 Stainless Steel, Ceramic, Dark Stone
Fan Speed	5000RPM
Temperature Sensor	45℃ Trigger
Machine Electricity Power	60W
Laser Head Power	5W
Laser Wave Length	455±5nm
Engraving Accuracy	0.06mm
Smoke Filter	Equipped with filtration system without enclosure
Multiple Connection	BT function, Type-C (Wi-Fi: 2.4Ghz, Bluetooth: 4.2)
Support System	Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux
Certification	CE FCC RoHS IEC

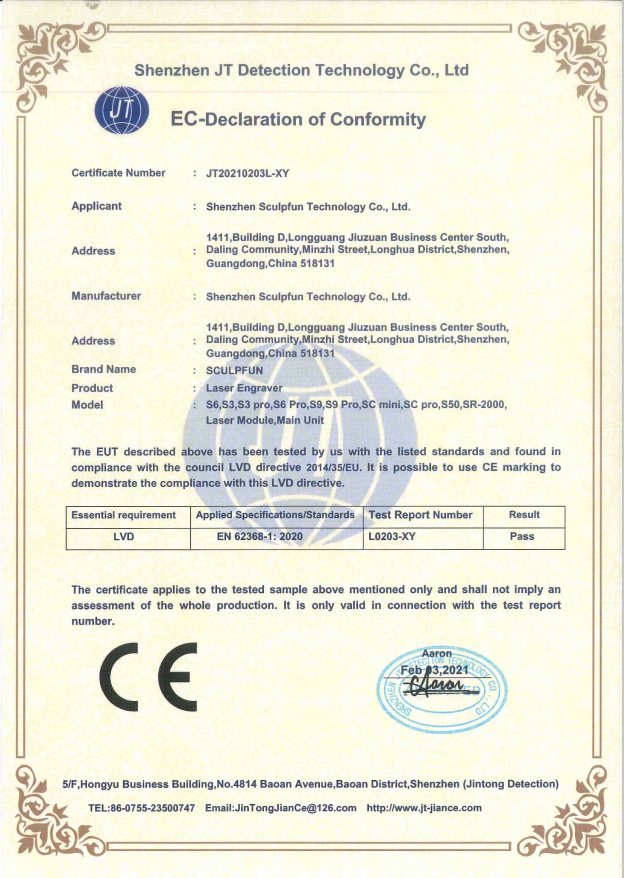

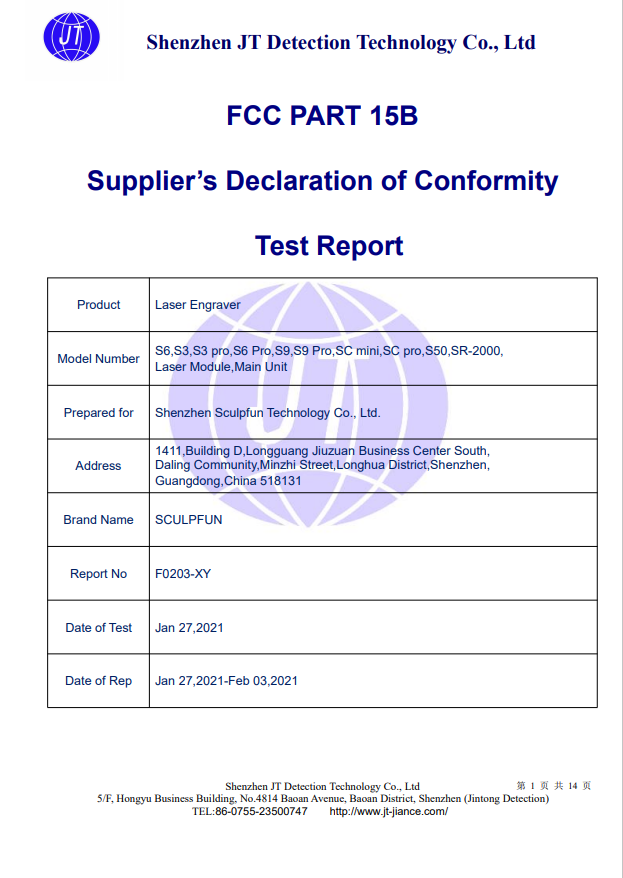

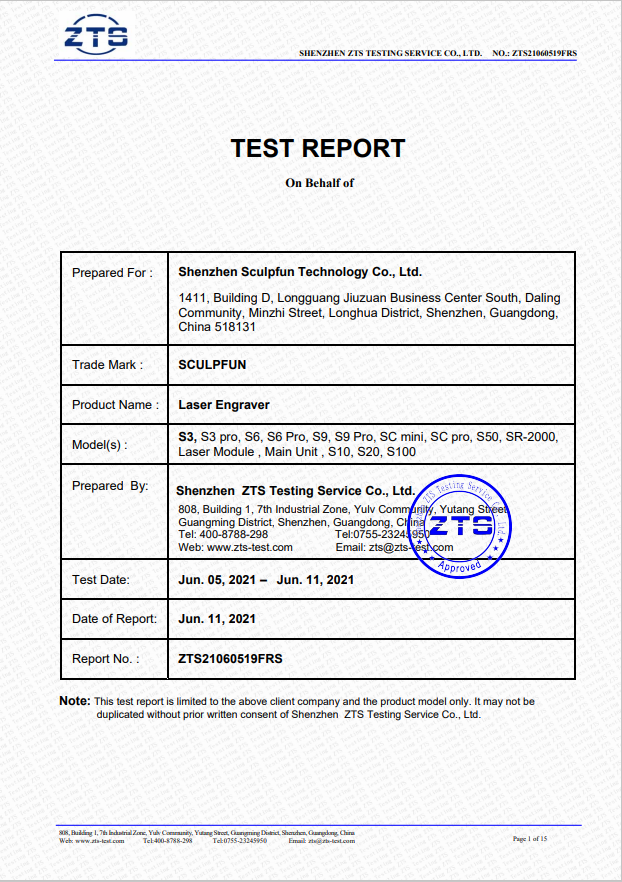

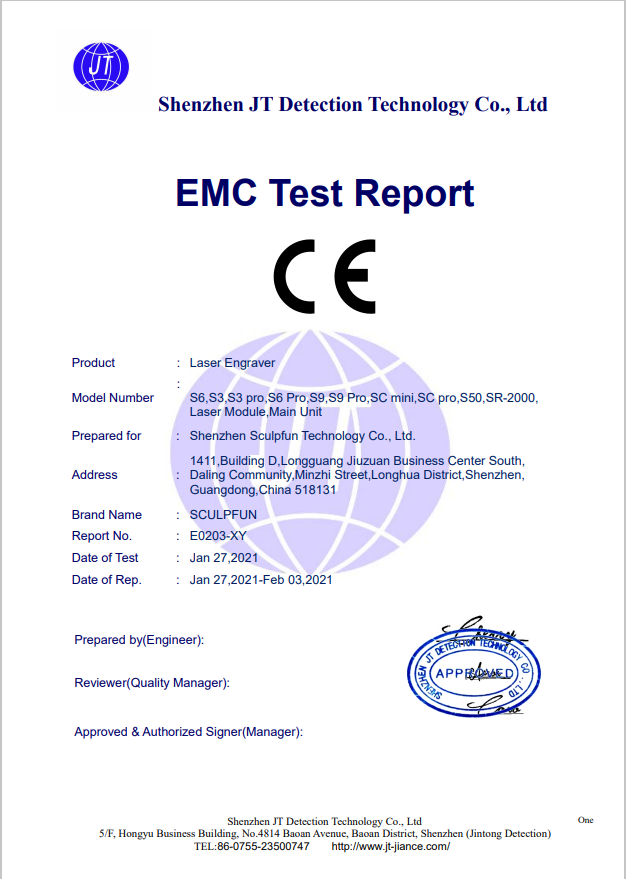

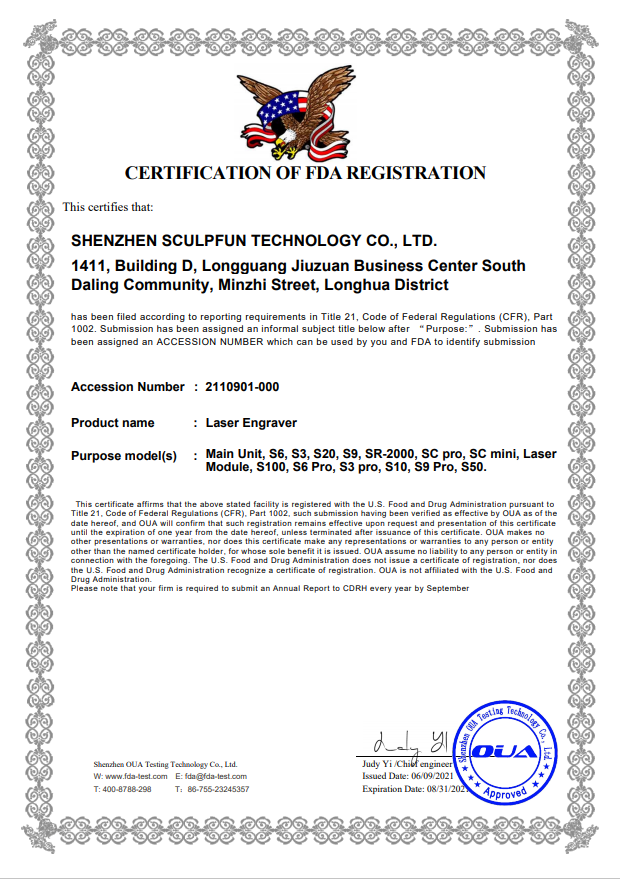

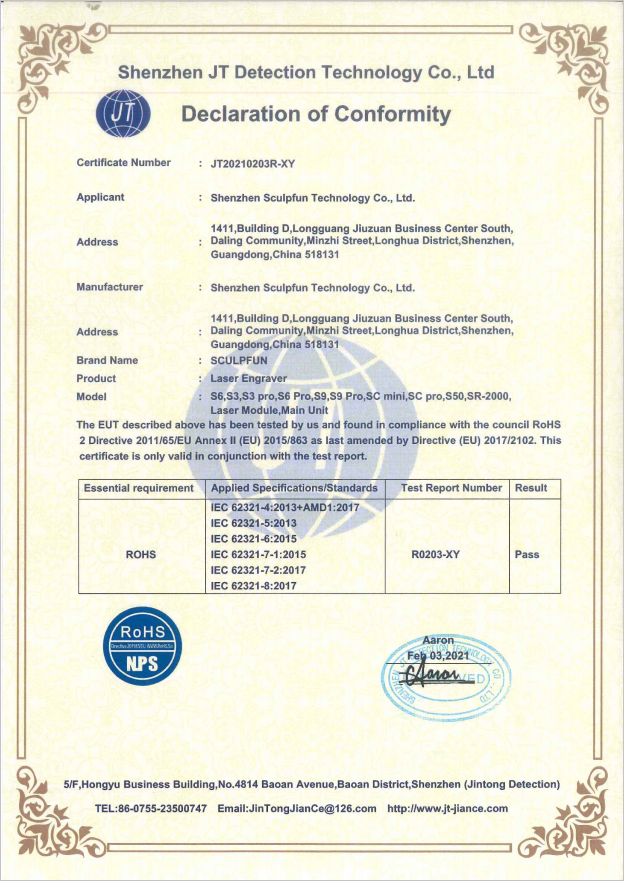

Certifications

Core Features

🎯

5W Ultra-fine Laser

iCube uses a 5W diode laser with 0.06mm ultra-fine focus for high-definition engraving and detailed paper cutting.

⚡

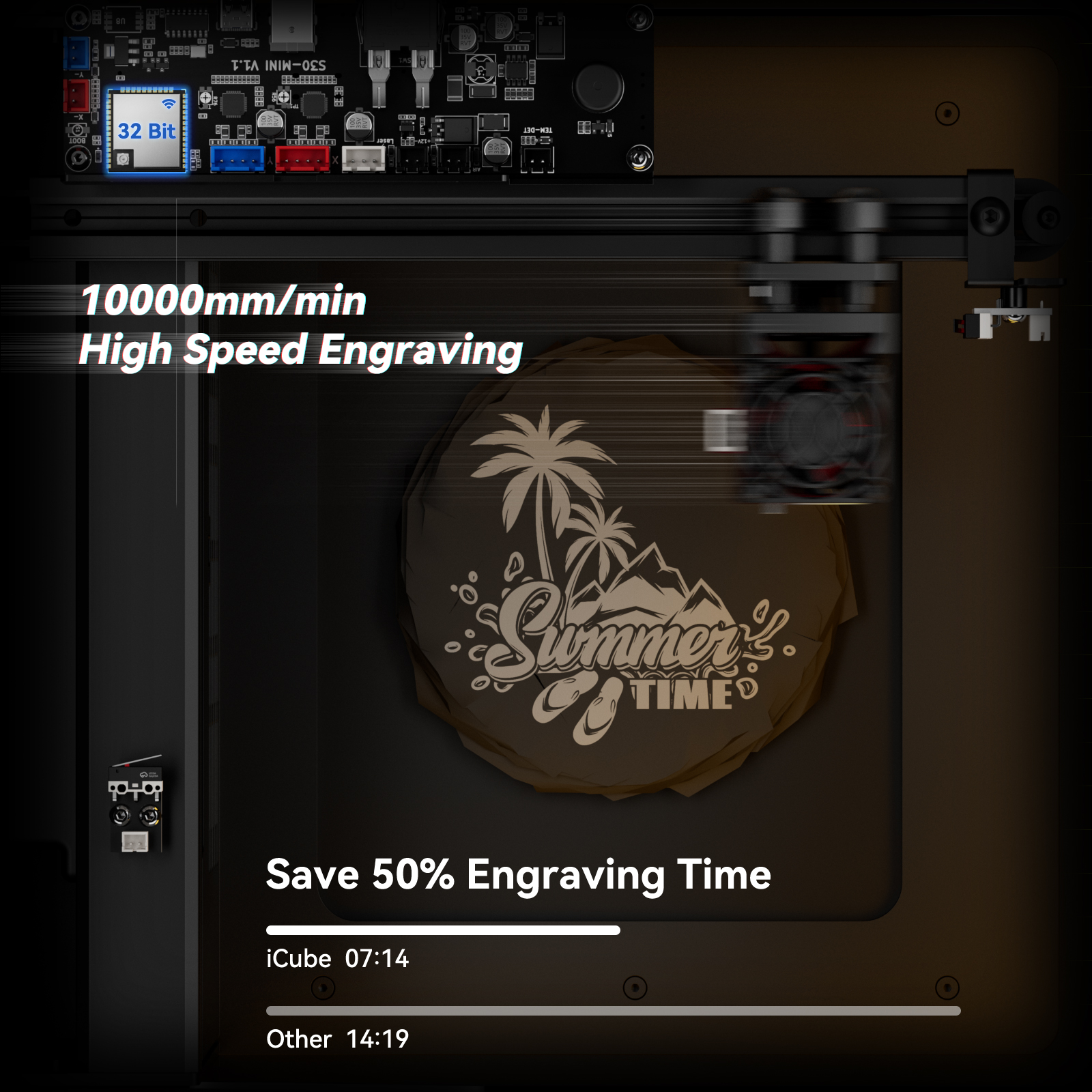

High-Speed Engraving

Equipped with a 32-bit motherboard reaching up to 10000mm/min engraving speed.

🌬️

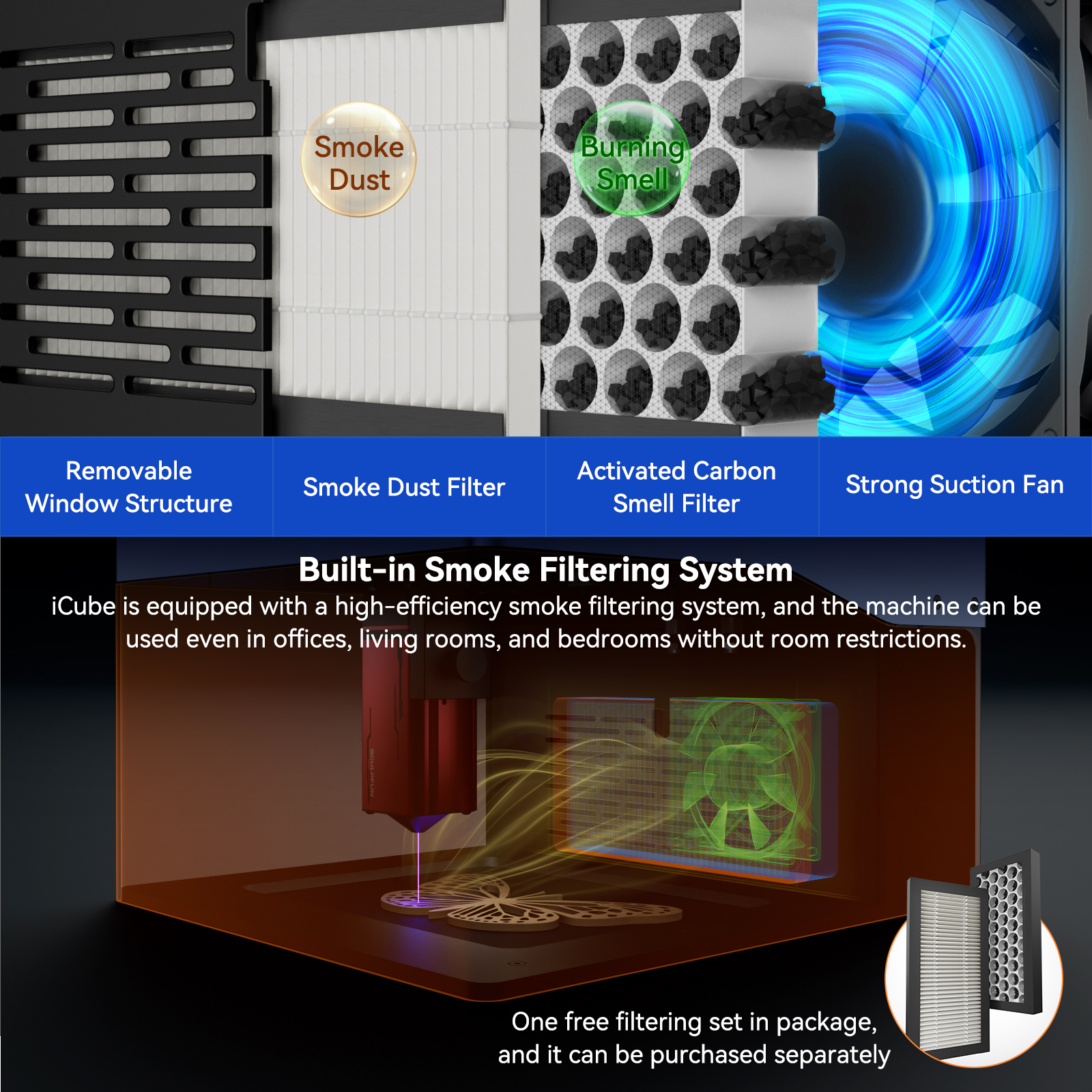

Smoke Filtration System

Effectively filters smoke generated during engraving, making it suitable for home or office use without a full enclosure.

📱

Multiple Connection Methods

Connect via mobile phone app or computer using Bluetooth or Type-C interface. Compatible with major OS.

⚠️

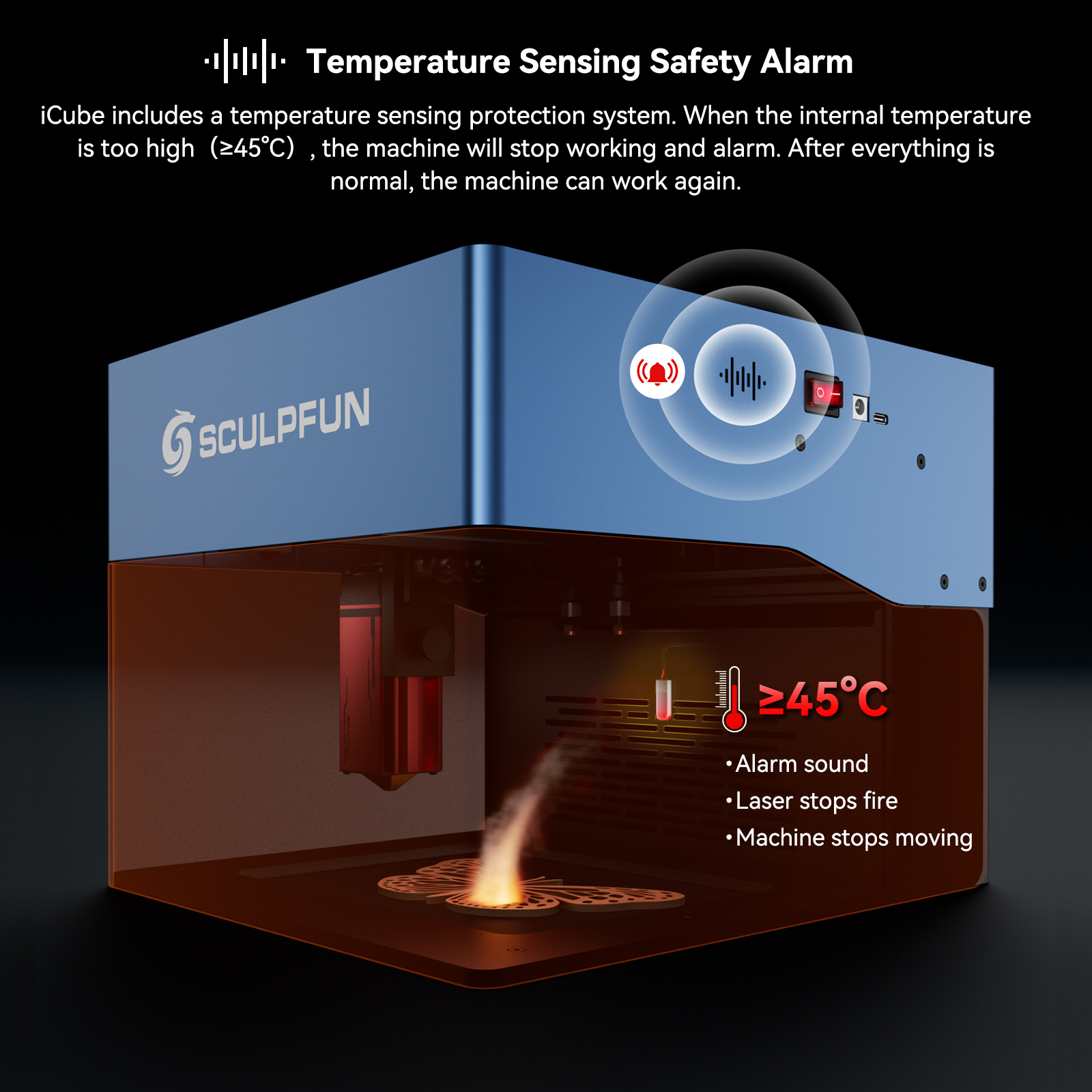

Temperature Alarm Function

Automatically stops and alarms if internal temperature exceeds 45℃ to ensure safety.

🛡️

Enclosed Eye Protection

Detachable fully enclosed Acrylic eye shield protects your eyes from different angles without goggles.

🔄

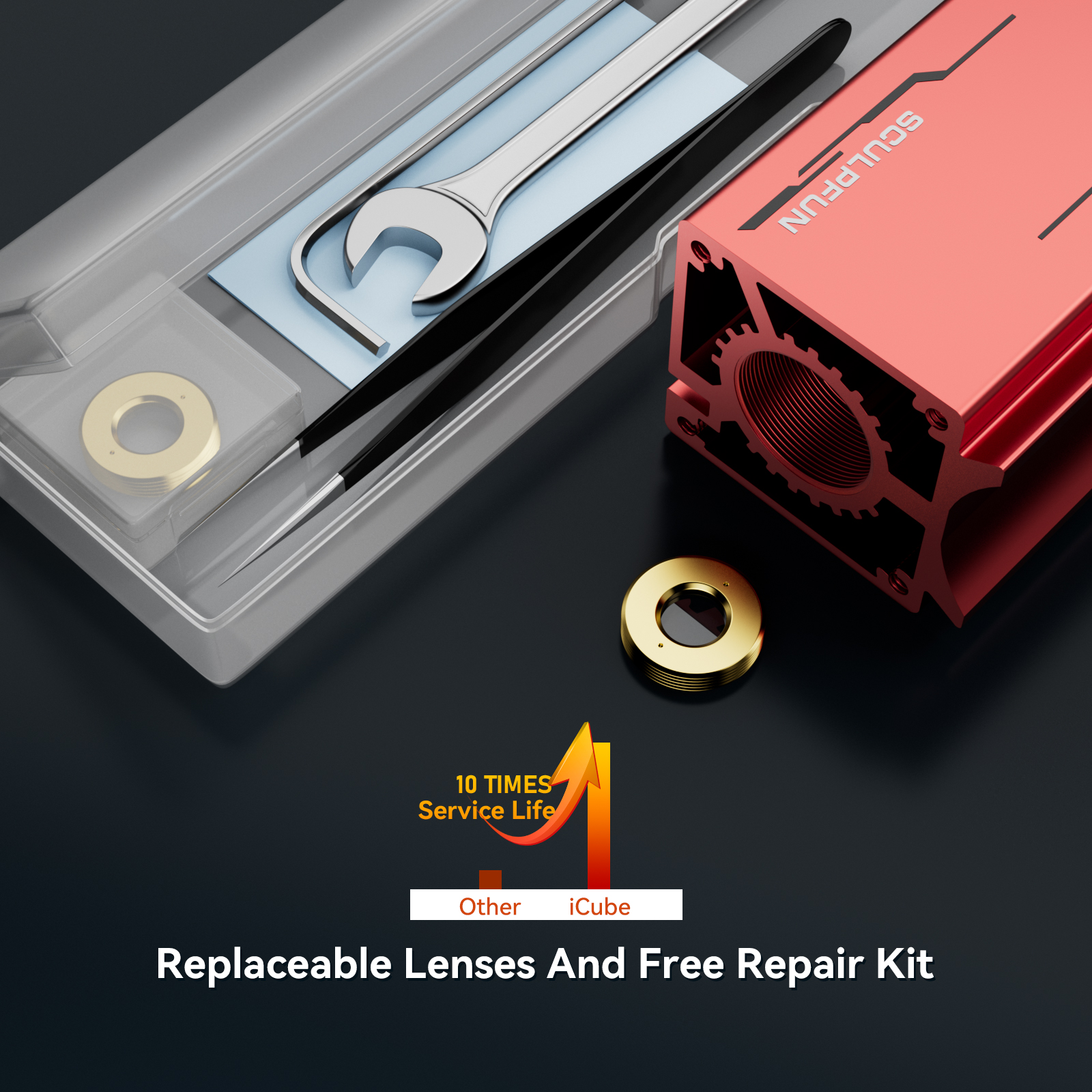

Replaceable Laser Lens

Innovative design allows lens replacement, extending laser life by over 10 times compared to standard lasers.

Details Images

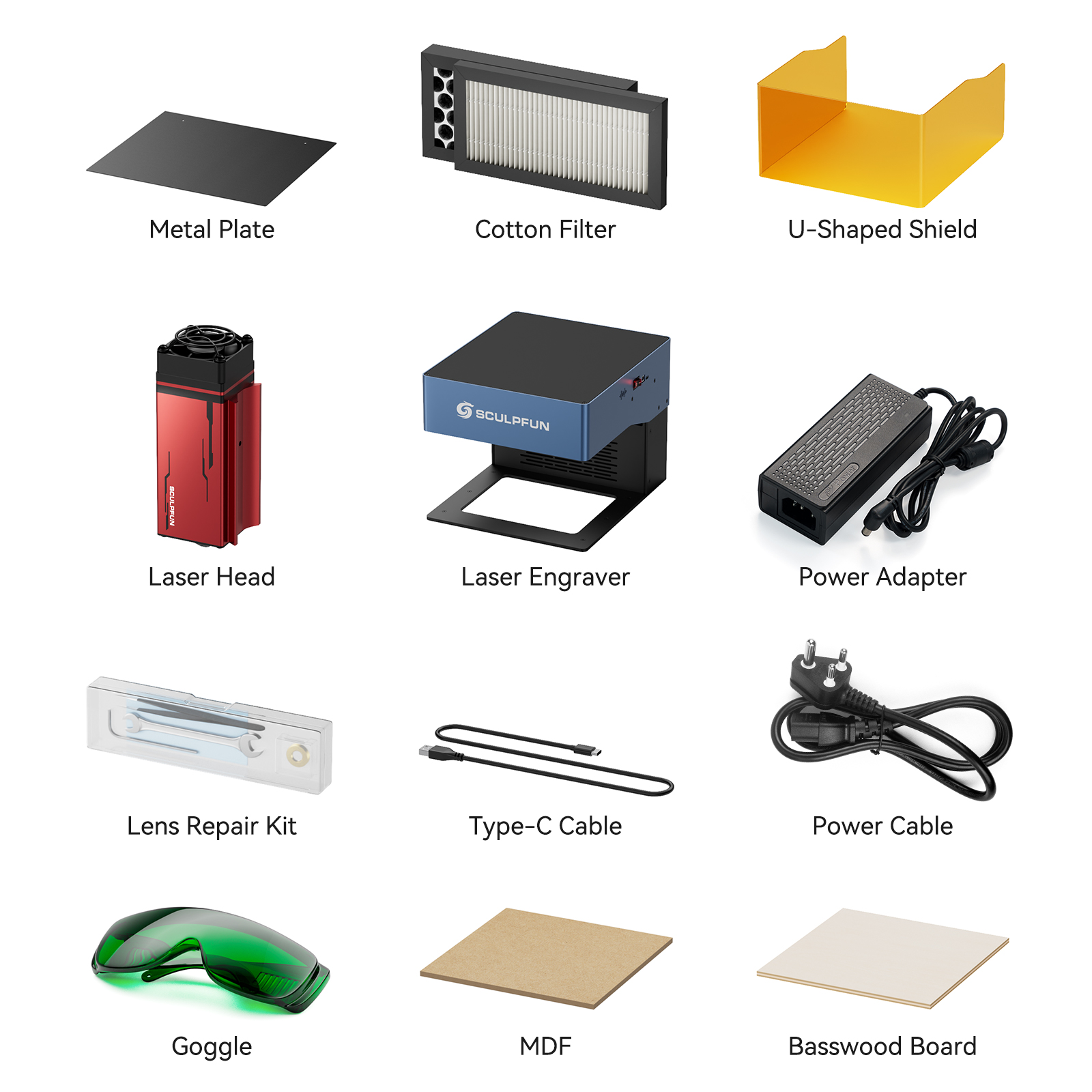

Product Packaging

Laser Engraver1*

Laser Head1*

Power Adapter1*

Power Cable1*

Type-C Data Cable1*

Cotton Filter Set1*

Lens Repair Kit1*

Goggle1*

Basswood Board1*

Metal Plate1*

Important Usage Tips

Avoid engraving specular reflective objects to prevent laser damage.
Replace the cotton filter periodically to maintain effective smoke filtration.
Do not leave the machine running unattended.
Keep away from children under 14; adult supervision required for ages 14+.
Always use the protective cover or wear goggles during operation.

FAQ

Q: What materials can the iCube Pro 5W engrave?

A: It can engrave wood, paper, cardboard, plastic, PCB boards, aluminum oxide, 304 stainless steel, ceramic, and dark stone.

Q: Do I need a full enclosure for the smoke filter to work?

A: No, the iCube is designed with a smoke filtration system that works effectively without a full enclosure, making it ideal for indoor use.

Q: Can I control the machine with my phone?

A: Yes, it supports mobile phone connection via the dedicated app using Bluetooth or Wi-Fi (2.4Ghz).

Q: What safety features are built into the machine?

A: It includes a temperature alarm (triggers at 45℃), a detachable fully enclosed eye protection shield, and a hardware buzzer.

Q: Is the laser lens replaceable?

A: Yes, the series features an innovative replaceable lens design which can extend the service life of the laser significantly.

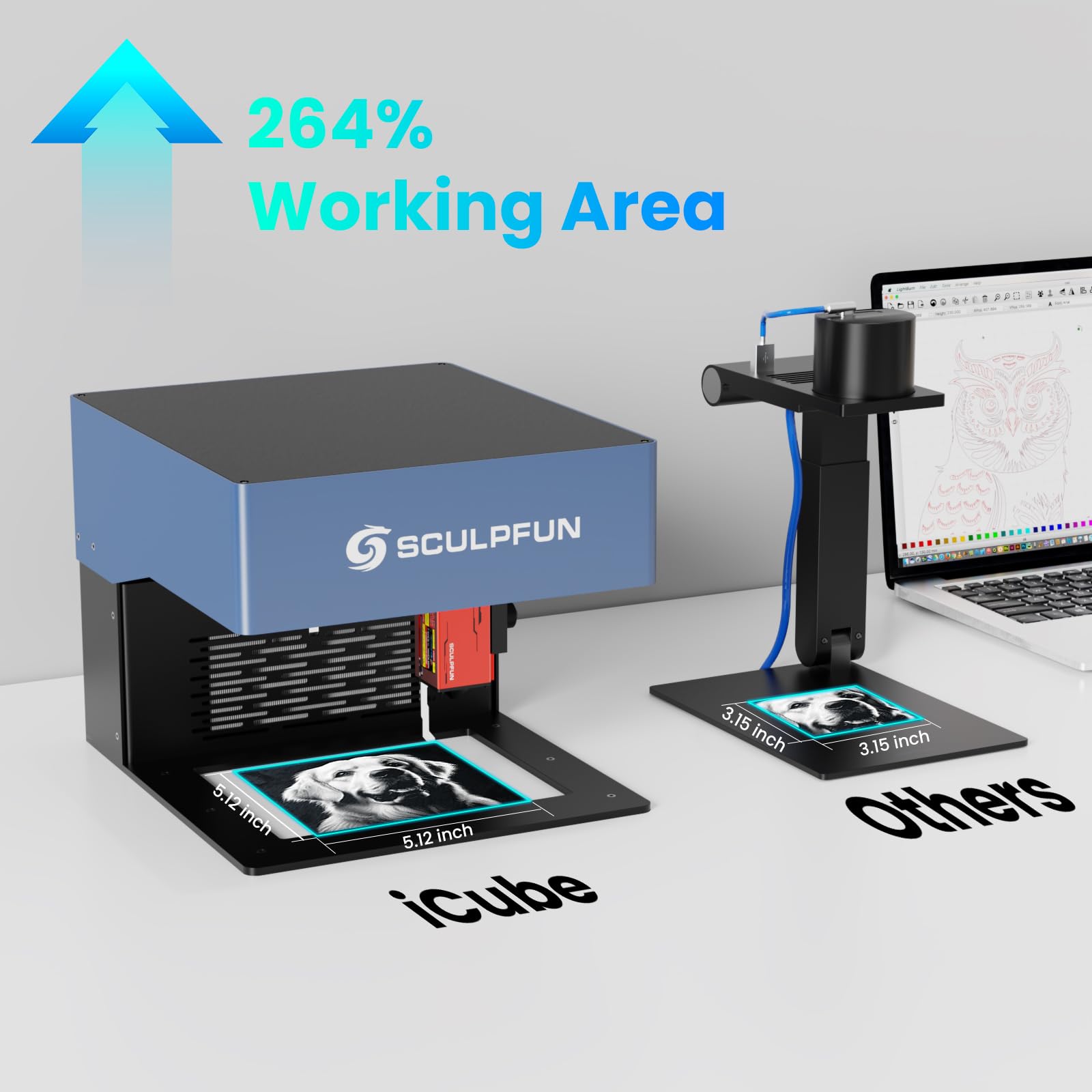

Q: Does it have an engraving size limit?

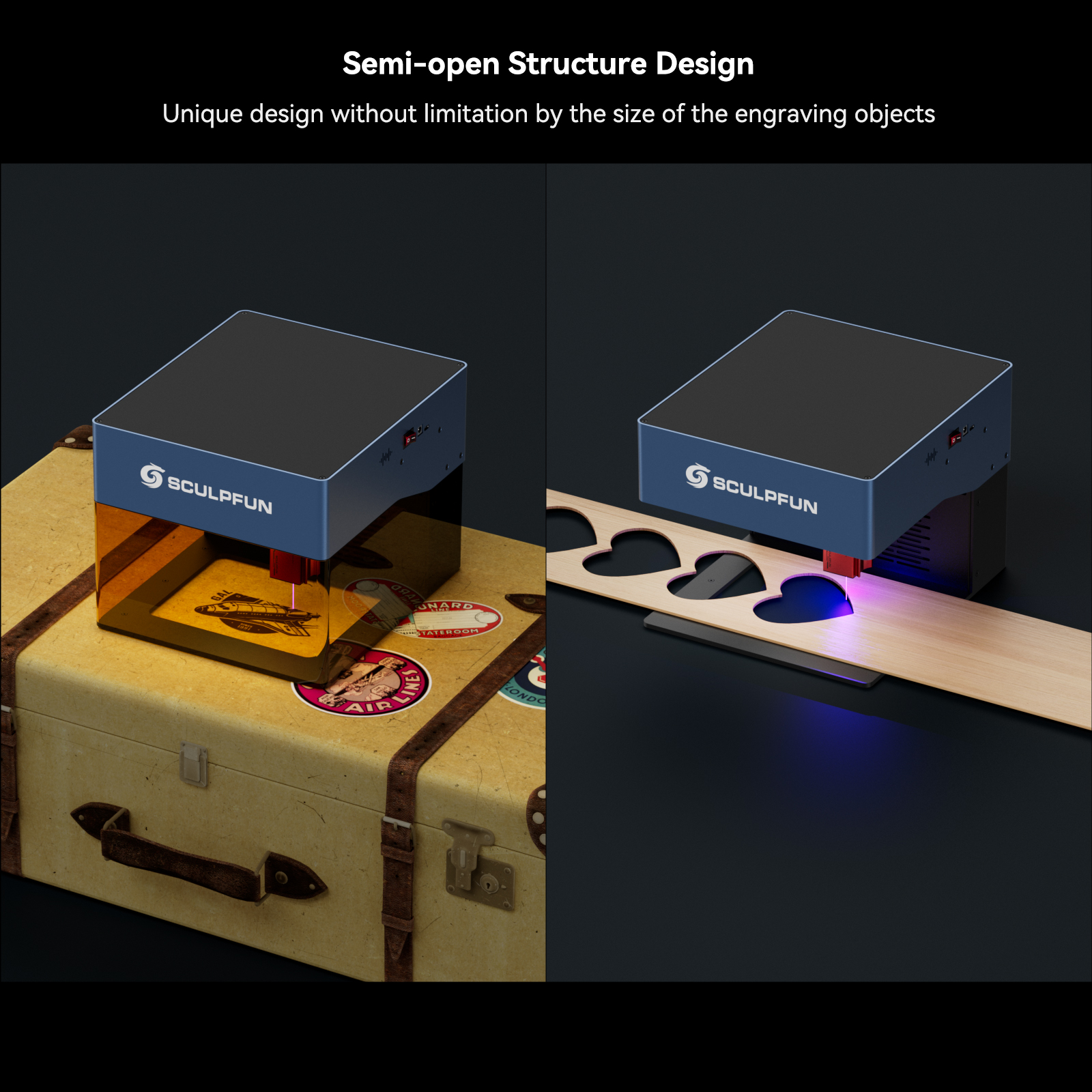

A: While the internal area is 130x130mm, its semi-open structure allows you to place the machine directly onto larger objects for engraving.
